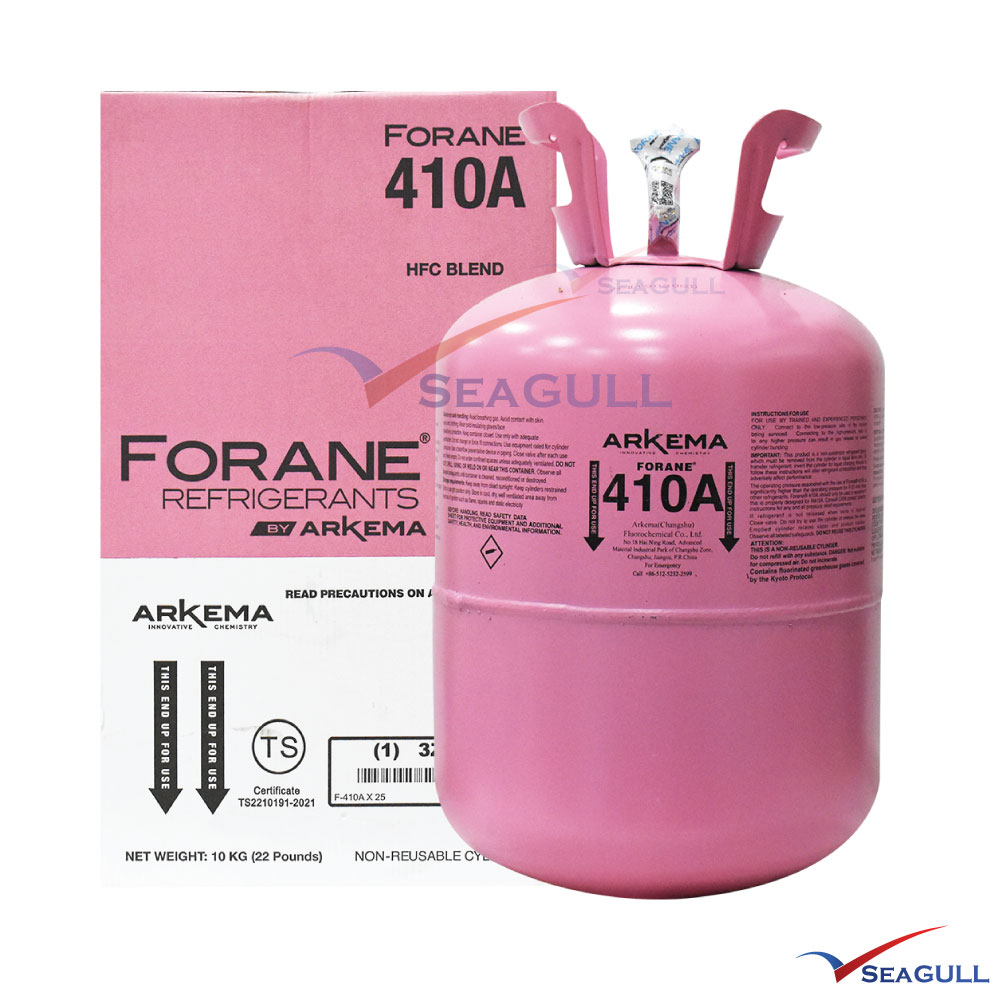

FORANE HFC ARKEMA R410A REFRIGERANT GAS

Component : HFC-32/125
Composition (mass %) : 50/50
Molecular Weight : 72.58
Boiling Point (°C) : -51.6
Freezing Point (°C) : -Nil- Critical Temperature (°C) : 71.47
Critical Pressure (MPa) : 4.923
Critical Density (kg/m³) : 486
Density – Saturated liquid (kg/m³) : 1061
Specific Volume – Saturated vapour (m³/kg) : 0.0153
Viscosity – Saturated liquid (mPa·s) : 0.178
Viscosity – Saturated vapor (mPa·s) : 0.0132
Isobaric Specific Heat Capacity – Saturated liquid (kJ/kg.K) : 1.711
Isobaric Specific Heat Capacity – Saturated vapor (kJ/kg.K) : 0.818
Latent Heat of Vaporization (Boiling point) (kJ/kg) : 274.8
Thermal Conductivity – Saturated liquid (W/m·K) : 0.0801
Thermal Conductivity – Saturated vapor (W/m·K) : 0.0128
Workplace Environmental Exposure Limit (ppm) : 1000
Flammability *1 : Non-flammable Ozone Depletion Potential (CFC11=1) : 0
Global Warming Potential *2 (CO2=1) : 2090
Solubility in Water (ppm) : 2700
Solubility of Water (ppm) : 1600
Packaging Specifications : 10.0kg (Disposable Cylinder)

Unless otherwise specified, the values in above table are at 25°C

*1 Based on ASHRAE 34 STANDARD
*2 Based on IPCC 4th Assessment Report 2007, integration time horizon 100 years
